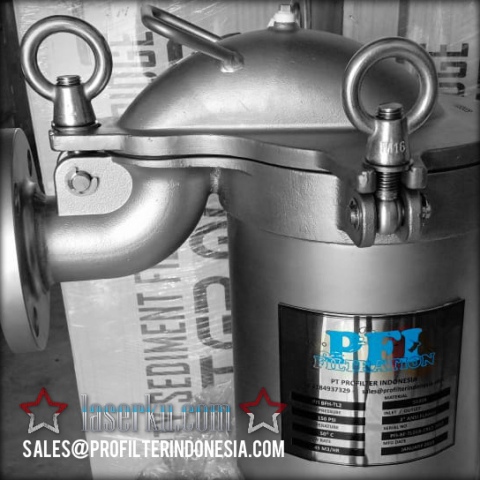

FSI FSPN-1300 Vessels Multi Bag Filter Housing
FSPN1300
Housing Bag Filter
FSI FSPN-1300 Vessels Multi Bag Filter Housing, FSI FSPN-1300 Housing Bag Filter, FSI FSPN-1300, FSI FSPN-1300 Filter Vessels, Multi Bag Filter Housing


FSI FSPN-1300 Vessels Multi Bag Filter Housing



Specifications

Housing Materials

304 stainless steel

316 stainless steel

Carbon steel



Gasket Materials

Buna

Buna white FDA

EPR

Viton®

Viton® Teflon® encapsulated



Number of Bags : 2

Filter Bag Size

Single Bag Design: -

Multi-Bag Design: 7



Maximum Operating Pressure

150 PSI (10.34 Bar)



Design Temperature Range

Carbon Steel: 20 to 500°F (-6 to 250°C)

Stainless Steel: -20 to 250°F (-28 to 121°C)

Non-Wetted Parts



Carbon Steel: Carbon Steel

Stainless Steel: May contain some plated Carbon Steel materials

Connections



Flange or NPT

Surface Finish



Carbon Steel: Acrylic enamel painted exterior

Stainless Steel: Light sand blast

Code Stamp (Size 1, 2 only)



ASME Sect VIII, Div 1, "U" or "UM" stamp

PolyLoc® Bag Seal



Positive Bag Seal without manual hold down

Lid Opening



Hinged or swing bolt with manual davit lid lift

See options for alternate set-up
