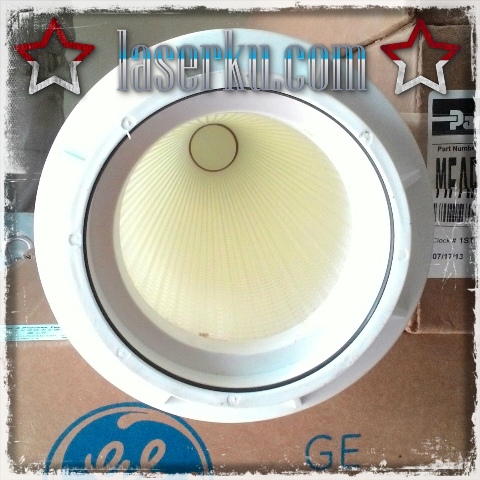

Fulflo MegaFlow Filter Cartridges
Pleated Filter Cartridge
Fulflo MegaFlow Filter Cartridges, Fulflo MegaFlow Filter Cartridges, MegaFlow Filter Cartridges, MegaFlow Filter Cartridges, Fulflo Filter Cartridges, Filter Cartridges

Fulflo MegaFlow Filter Cartridges


High Flow Capacity Pleated Filter Cartridges


Parker’s Fulflo MegaFlow filter cartridges provide a cost effective alternative to wound and other 2 1/2 inch OD style filter cartridges in high flow applications such as reverse osmosis pre-filtration and similar applications where nominal efficiency is sufficient. Each MegaFlow cartridge can handle flow rates up to 175 gpm (662 lpm), significantly reducing the number of cartridges required and the housing size. Each 6 inch (152 mm) diameter MegaFlow cartridge has flow capacity equal to 8 standard 2 1/2 inch OD X 40 inch long filter cartridges. Positive O-ring seals and a built in handle make cartridge installation reliable, fast and easy.

MegaFlow cartridges are available in either pleated polypropylene or cellulose media with nominal ratings of 0.5, 1, 5 and 10 micron.



·         High flow capacity means fewer cartridges and reduces labor costs to change

·         High flow capacity allows smaller housings and less capital expenditure

·         Built in handle makes change fast, easy and safe

·         O-ring seal assures filtration integrity

·         Choice of polypropylene or cellulose media allows use in both aqueous and non-aqueous fluid applications

·         Thermally bonded polypropylene and phenolic resin bonded cellulose filter media prevent particle bleed through

·         and unloading that commonly occurs with wound cartridges

·         High surface area pleated design provides lower pressure drop and longer service life than other cartridges

·         All materials of construction in polypropylene cartridges comply with FDA regulations per CFR Title 21

·         Horizontal and vertical housings are available for flow rates up to 3,325 gpm (12,586 LPM)



·         Potable Water

·         Waste Water

·         Reverse Osmosis Pre-Filtration

·         Lubricating Oil

·         Coolants


Parker Fulflo MegaFlow Filter Cartridges


·         Materials of Construction:

·         Media: Polypropylene microfiber (P Code); Cellulose with phenolic binder (C Code)

·         Support Layers: Polypropylene (P Code); None (C Code)

·         End caps: Glass Filled Polypropylene

·         O-Rings: Buna-N, EPR, Silicone, Fluoroelastomer


Recommended Operating Conditions:

·         Change Out Differential Pressure: 35 psid (2.4 bar)

·         Maximum Flow Rate: 175 gpm (662 lpm)

·         Maximum Temperature: 200°F (93°C)

·         Maximum Differential Pressure: 150 psid (10 bar)


Nominal Filtration Ratings:

·         (90%) 0.5, 1, 5 and 10 μm



·         6 in (152 mm) OD, 3.5 in (89 mm) ID,

·         40 in (1016 mm) long


Surface Area:

·         55-60 ft2 (5.1-5.6m2)
