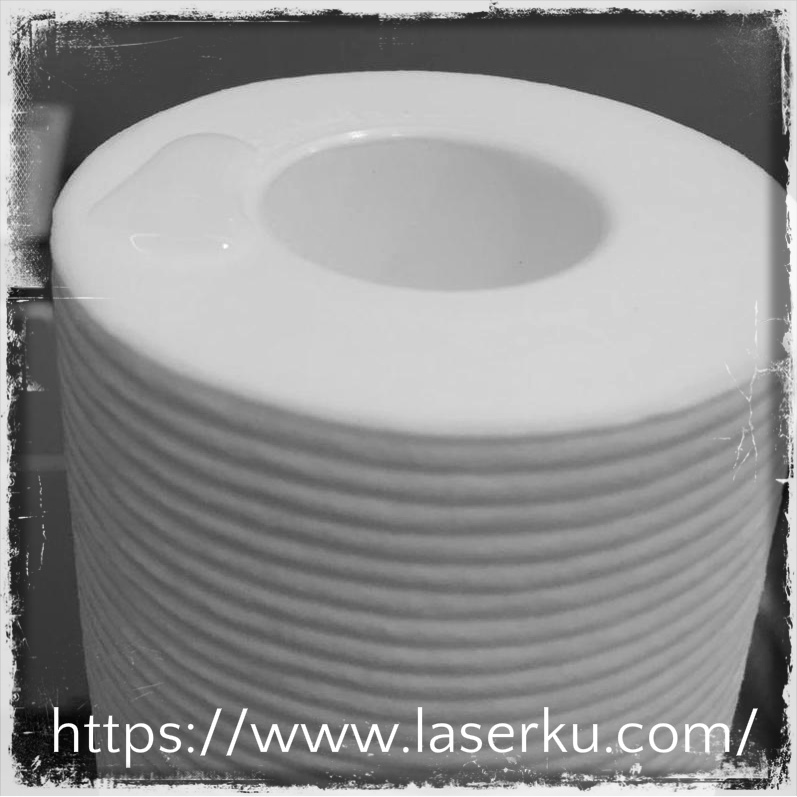

JNC Cleal GF-100 Cartridge Filter
Untuk info stock barang dan harga silahkan hubungi 081385066789
Material : Polyolefin
Structure
· The cartridges are constructed with thermally bonded bicomponent fibers which are binder-free.
Advantages
· Stable filtration accuracy
· High pressure resistance
· High flow rate - Low pressure drop
· No pore enlargement or unloading of filter elements
· Excellent chemical resistance
Specifications JNC Cleal GF-100 Cartridge Filter
|
Grade |
GF-01 |
GF-03 |
GF-05 |
GF-10 |
GF-25 |
GF-50 |
GF-75 |
GF-100 |
|
Nominal Rating (μm) |
1 |
3 |
5 |
10 |
25 |
50 |
75 |
100 |
Size
|
Outside diameter |
62mm |
|
Inside diameter |
30mm |
|
Standard Length |
250mm, 500mm, 750mm, 1000mm |
*Please inquire concerning non-standard size.
Filters for Plating and Circuit Boards
There is no fiber migration in JNC cartridge filters since the materials of construction are thermally bonded in three dimensions. Circuit defects are prevented because JNC filters do not shed fibers, the filters remove particulate contaminants and the filters are compatible with a wide range of chemicals.
Filters for Coating
There is no fiber migration in JNC cartridge filters since raw materials are thermally bonded in three dimensions. Moreover, since raw materials used to make filters can produce defects [craters, fish eyes, etc.], JNC filters do not shed thereby eliminating filter generated defects.
Filters for Drinking Water
There is no fiber migration in JNC cartridge filters since raw materials are thermally bonded in three dimensional fiber matrix. Moreover, the JNC filter process is not a chemical process with associated variability in production. As a result of the automated Chisso manufacturing processes, the filters are consistent and reproducible which translates to high quality filters.
Filters for Electronic Components and Cleaning Fluids
There is no fiber migration in JNC cartridge filters since the filter raw materials are thermally bonded in a three-dimensional fiber matrix. Moreover, since the filters do not shed and can tolerate high pressures, defective circuit boards are reduced.
Filters for Pure Water
There is no fiber migration in JNC cartridge filters since raw materials are thermally bonded in a three dimensional fiber matrix. Moreover, since the filters do not shed and can tolerate high pressures, high purity water is achieved.
JNC Cleal GF-100 Cartridge Filter
We have product JNC Cleal GF Cartridge Filter :
· CP FILTER
· CPH FILTER
· CP2 FILTER
· BM FILTER
· POROUSFINE
· CSW FILTER
· GF FILTER
