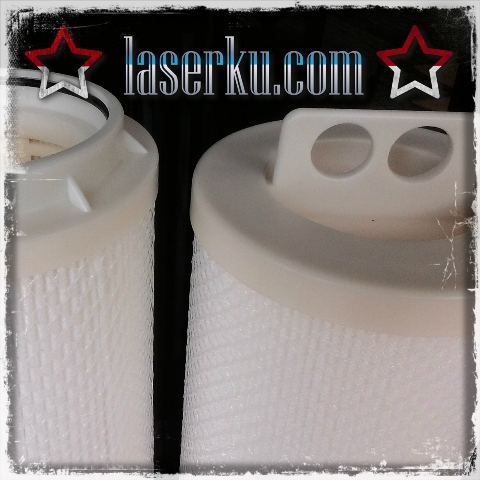

MCNP010-40N MegaFlow Filter Cartridges
MCNP010-40N
Pleated Filter Cartridge
MCNP010-40N MegaFlow Filter Cartridges, MCNP010-40N, MegaFlow Filter Cartridges, MCNP010-40N Filter Cartridges, Filter Cartridges

MCNP010-40N MegaFlow Filter Cartridges



MCNP010-40N



 DESCRIPTION

ATTRIBUTE VALUE

PRODUCT TYPE

FILTER CARTRIDGE

CONSTRUCTION

PLEATED DEPTH

FILTER MEDIA

POLYPROPYLENE

FILTER RATING

1 MICRON

DIMENSIONS

6" NOMINAL OD, 40" LONG

END CAP CONFIGURATION

LARGE ID INTERNAL O-RING/FLAT CAP WITH HANDLE

SEAL MATERIAL

BUNA-N

END CAP MATERIAL

GLASS FILLED POLYPROPYLENE

CORE MATERIAL

POLYPROPYLENE

SUPPORT/DRAINAGE

POLYPROPYLENE

TYPICAL FLOW RATE

12.8GPM/PSID 175 MAX

TRADE/BRAND NAME

FULFLO MEGABOND PLUS





High Flow Capacity Pleated Filter Cartridges



Parker’s Fulflo MegaFlow filter cartridges provide a cost effective alternative to wound and other 2 1/2 inch OD style filter cartridges in high flow applications such as reverse osmosis pre-filtration and similar applications nominal efficiency is sufficient. Each MegaFlow cartridge can handle flow rates up to 175 gpm (662 lpm), significantly reducing the number of cartridges d and the housing size. Each 6 inch (152 mm) diameter MegaFlow cartridge has flow capacity equal to 8 standard 2 1/2 inch OD X 40 inch long filter cartridges. Positive O-ring seals and a built in handle make cartridge installation reliable, fast and easy.

MegaFlow cartridges are available in either pleated polypropylene or cellulose media with nominal ratings of 0.5, 1, 5 and 10 micron.



Benefits

·         High flow capacity means fewer cartridges and reduces labor costs to change

·         High flow capacity allows smaller housings and less capital expenditure

·         Built in handle makes change fast, easy and safe

·         O-ring seal assures filtration integrity

·         Choice of polypropylene or cellulose media allows use in both aqueous and non-aqueous fluid applications

·         Thermally bonded polypropylene and phenolic resin bonded cellulose filter media prevent particle bleed through

·         and unloading that commonly occurs with wound cartridges

·         High surface area pleated design provides lower pressure drop and longer service life than other cartridges

·         All materials of construction in polypropylene cartridges comply with FDA regulations per CFR Title 21

·         Horizontal and vertical housings are available for flow rates up to 3,325 gpm (12,586 LPM)



Applications

·         Potable Water

·         Waste Water

·         Reverse Osmosis Pre-Filtration

·         Lubricating Oil

·         Coolants



Parker Fulflo MegaFlow Filter Cartridges

Specifications

·         Materials of Construction:

·         Media: Polypropylene microfiber (P Code); Cellulose with phenolic binder (C Code)

·         Support Layers: Polypropylene (P Code); None (C Code)

·         End caps: Glass Filled Polypropylene

·         O-Rings: Buna-N, EPR, Silicone, Fluoroelastomer



Recommended Operating Conditions:

·         Change Out Differential Pressure: 35 psid (2.4 bar)

·         Maximum Flow Rate: 175 gpm (662 lpm)

·         Maximum Temperature: 200°F (93°C)

·         Maximum Differential Pressure: 150 psid (10 bar)



Nominal Filtration Ratings:

·         (90%) 0.5, 1, 5 and 10 μm



Dimensions:

·         6 in (152 mm) OD, 3.5 in (89 mm) ID,

·         40 in (1016 mm) long



Surface Area:

·         55-60 ft2 (5.1-5.6m2)



PT.PROFILTER INDONESIA Quick Response + 6281385066789 Email : sales@profilterindonesia.com
