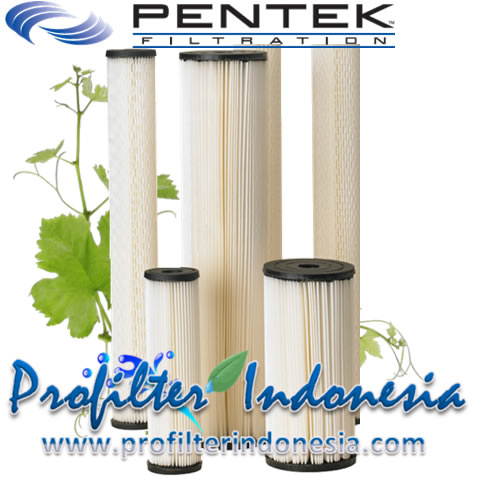

S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes.
The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket.
Features, Options, & Benefits
· Pleated design maximizes dirt-holding capacity
· Designed for general water filtration purposes
· Recommended for chlorinated water supplies
· Economically priced
· Nominal 20-micron rating
Cartridge Specifications and Performance Data
Model : Pentek S1
Maximum Dimensions : 2-5⁄8" x 9-3⁄4" (67 mm x 248 mm)
Micron Rating (nominal) : 20 micron
Initial ΔP (psi) @ Flow Rate (gpm) : 2.4 psi @ 10 gpm (0.17 bar @ 38 Lpm)
Surface Area : 580 in.2 (0.38 m2)
Recommended Flow Rate : 12 gpm (45 Lpm)
Materials of Construction
Filter Media : Resin-Impregnated Cellulose
End Caps : Vinyl Plastisol
Core : Polypropylene
Temperature Rating : 40–145ºF (4.4–62.8ºC)
We have Models :
S1 , S1-20 , S1-BB , S1-20BB
