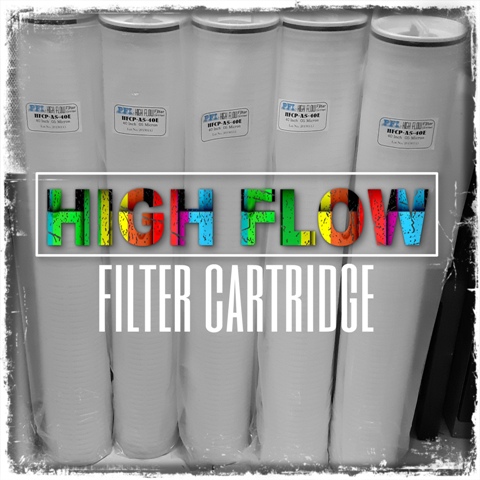

PFI HF Series Hi Flo Filter Cartridge 6 x 40 inch
PFI-HF640
PFI Filter Cartridge
PFI HF Series Hi Flo Filter Cartridge 6 x 40 inch, PFI Filter Cartridge 6 x 40 inch, Hi Flo Filter Cartridge 6 x 40 inch, PFI Filter Cartridge 6 x 40 inch

PFI HF Series Hi Flo Filter Cartridge 6 x 40 inch



Description:

HF Series Pleated Filter cartridges have a 6 inch/152mm large diameter, and is a coreless, single open-ended cartridge with an inside to outside flow pattern. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpower in many applications



Applications:

Prefiltration of RO and Pretreatment of sea water desalination

Condensate water filtration

API, solvents, and water filtration in BioPharm market

The filtration of bottled water, high fructose, edible oil, soft drinks, and milk.

Paints and coatings, Petrochemical, Refineries

Microelectronics, film, fiber, and resin



Specifications for HF Series Filter Cartridges

Dimensions

Outside diameter : 6” (152mm)

Length  :  20” (528mm), 40” (1022mm), 60” (1538mm)



Material of Construction

Filter Media : Pleated Polypropylene, Polypropylene Melt Blown, Pleated Glass Fiber

End Caps : Glass Fiber reinforced Polypropylene

Seal Material : EPDM, NBR

Support/Drainage : Polypropylene



Performance

Micron Rating :

1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm

Max Operating Temperature :

GF: 250°F (121°C), PP: 180°F (82°C), PM: 150°F (65°C)

Max Operating Pressure :

GF: 3.4 Bar@250°F(121°C), PP: 3.4Bar@180°F(82°C), PM:1Bar@150°F(65°C)

Suggested Max Flow :

20”: 660LPM, 40” : 1300LPM, 60” : 1900LPM

Recommended Change Out Differential Pressure: 2Bar@68°F (20°C)

Replace Filter Cartridge HF60PP005A HF60PP001A HF60PP010A HF60PP015A HF60PP025A HF60PP040A HF60PP070A HF40PP005A HF40PP001A HF40PP010A HF40PP015A HF40PP025A HF40PP040A HF40PP070A
