Spun Cartridge Filter 5 Micron
SCF51M
PFI Filter Cartridge
Spun Cartridge Filter 5 Micron, Spun Cartridge Filter, 5 Micron, Cartridge, Filter 5 Micron, Cartridge 5 Micron, Filter Cartridge, Cartridge Filter 5 Micron

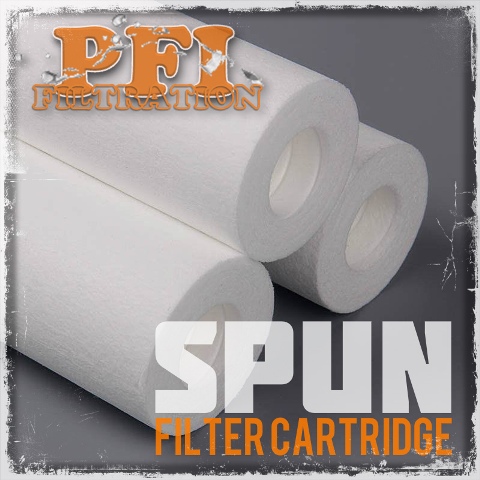

 Spun Cartridge Filter 5 Micron


PFI Spun Bonded Filter Cartridges are made of 100% polypropylene fibers. These fibers have been carefully spun together to form a true gradient density from outer to inner surface. Spun Bonded Filter Cartridges are available with core and without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

Features

100 % Polypropylene for wide chemical compatibility

Excellent flow with low pressure drop

Excellent flow with low pressure drop

High strength & pressure resistance

Nominal & absolute filtration rating

Free of surfactants, Binders and Adhesives

High dirt holding capacity

One piece construction up to1016 mm. and more


Technical Specifications

Sizes : 10”,20”,30”40” Long

Inner Diameter : 25mm , 28 mm ,48 mm

Outer Diameter : 64 mm (2.5”) , 114mm (4.5”) , 6” , 8”

Micron Rating : 5


Configuration

Double Open Type (DOE Type)

Code 7 (226 O Ring Design)


End Cap Filter :

DOE – Double Open End ( standar 2 ujung masing masing berlubang )

SOE – Single Open End ( ujung sebelah berlubang dan ujung sebelah tertutup )

Jenis SOE ada beberapa macam sebegai berikut

222/Flat dengan ujung terbuka ukuran 222 O-ring ada 2 dan ujung sebelah tertutup rata

222/Fin dengan ujung terbuka ukuran 222 O-ring ada 2 dan ujung sebelah tertutup dengan moncong segitiga atau sering disebut ujung tombak

226/Flat dengan ujung terbuka ukuran 226 O-ring ada 2 dan terdapat slot pengunci putar ke dalam housing filter , dan ujung sebelah filter tertutup rata

226/Fin dengan ujung terbuka ukuran 226 O-ring ada 2 dan terdapat slot pengunci putar ke dalam housing filter, ujung sebelah lagi tertutup dengan moncong segitiga atau sering disebut ujung tombak



Construction



Spun bonded filter cartridges are made up of 100% Polypropylene


Applications

Pharmaceuticals: base product clarifications, membrane pre filter

Fine chemicals: solvents, process streams, water purification

Food & beverages: bottled water, flavors, polishing lines

Petrochemicals: water flood, completion fluids, amines

Water treatment: membrane protection, resin trap

Cosmetics: alcohols, essential oils , water lines

Electronics: electroplating, etching, image development

Metal finishing: plating solution, paint and resin products, wash

Magnetic coating: dispersions, coating lines, solvents
