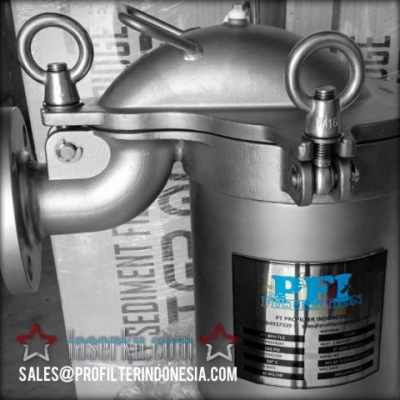

FSI FSPN-252 Vessels Multi Bag Filter Housing
Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part water treatment untuk keperluan industri dengan price harga terbaik
Specifications
Housing Materials
304 stainless steel
316 stainless steel
Carbon steel
Gasket Materials
Buna
Buna white FDA
EPR
Viton®
Viton® Teflon® encapsulated
Number of Bags : 2
Filter Bag Size
Single Bag Design: 2
Multi-Bag Design: 2
Maximum Operating Pressure
150 PSI (10.34 Bar)
Design Temperature Range
Carbon Steel: 20 to 500°F (-6 to 250°C)
Stainless Steel: -20 to 250°F (-28 to 121°C)
Non-Wetted Parts
Carbon Steel: Carbon Steel
Stainless Steel: May contain some plated Carbon Steel materials
Connections
Flange or NPT
Surface Finish
Carbon Steel: Acrylic enamel painted exterior
Stainless Steel: Light sand blast
Code Stamp (Size 1, 2 only)
ASME Sect VIII, Div 1, "U" or "UM" stamp
PolyLoc® Bag Seal
Positive Bag Seal without manual hold down
Lid Opening
Hinged or swing bolt with manual davit lid lift
See options for alternate set-up
